Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Working pressure (bar/MPa) | 30 - 210 / 3 - 21 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 7,8 |
| Consumption of heating oil or gas at full load (kg/h) | 6,4 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 5,1 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 172,6 |
| Weight incl. packaging (kg) | 184,8 |
| Dimensions (L x W x H) (mm) | 1330 x 750 x 121 |
Equipment
- 1 x Spray gun: EASY!Force Advanced
- 1 x High-pressure hose: 20 m, ID 8, 315 bar
- 1 x Spray lance: 1050 mm
- 1 x Power nozzle
- Cleaning agent function: 20 10 l tank
- Integrated automatic hose reel
- ANTI!Twist
- Tanks for cleaning agents, calcification protection and fuel that can be filled from the outside
- Control panel with display light
- Pressure switch-off
- Pole reverse plug (3~)
- 2 cleaning agent tanks
- Dry-running protection

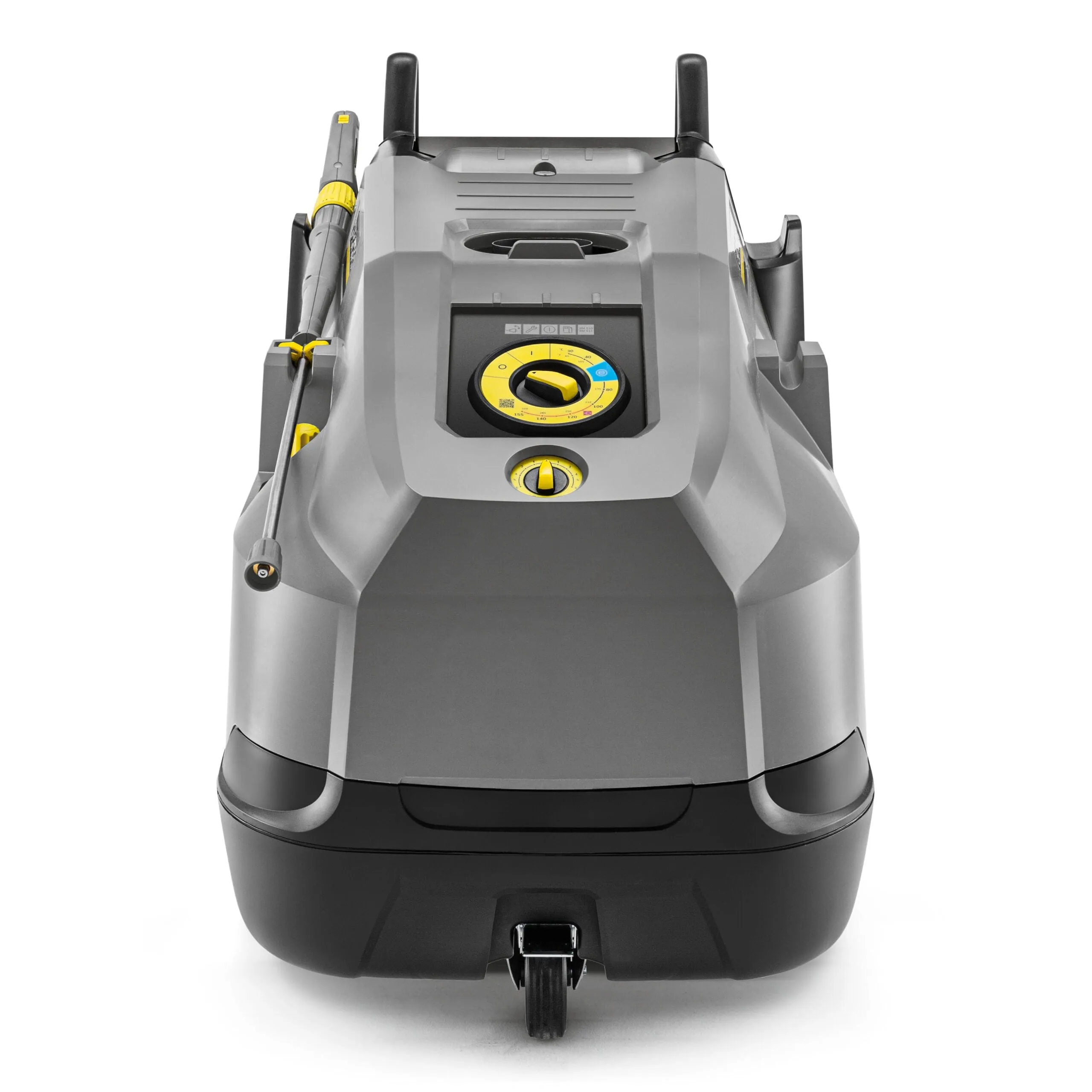

As Kärcher's most powerful hot water high-pressure cleaner in the middle class, the HDS 10/21-4 M with automatic hose reel and integrated Ultra Guard HP hose is impressive in all respects. The hose reel allows the 20-metre-long, Teflon-coated hose to be wound and unwound at an angle of up to 45° and also shortens the usual set-up time by just over 50 per cent. In addition, the robust 3-piston axial pump with ceramic piston, the low-speed, water-cooled, 4-pole electric motor, optimised burner engineering and the economical eco!efficiency mode ensure maximum performance and economical operation. Users also benefit from intelligent ergonomics thanks to the energy-saving EASY!Force Advanced HP trigger gun with 1050 millimetre spray lance and servo control, as well as the simple 1-switch operation and the many options for accessory storage. The machine, which is extremely easy to maintain, also stands out from the crowd with its 2 detergent tanks, patented nozzle technology, proven safety technology and time-saving EASY!Lock quick-release fasteners as standard.
Features and benefits
| Automatic hose reel | - Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating.
- Automatic hose reel for convenient and safe storage of the 20 metre high-pressure hose.
|
| Wide-ranging accessories with EASY!Lock | - EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.
|
| High efficiency | - In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
|

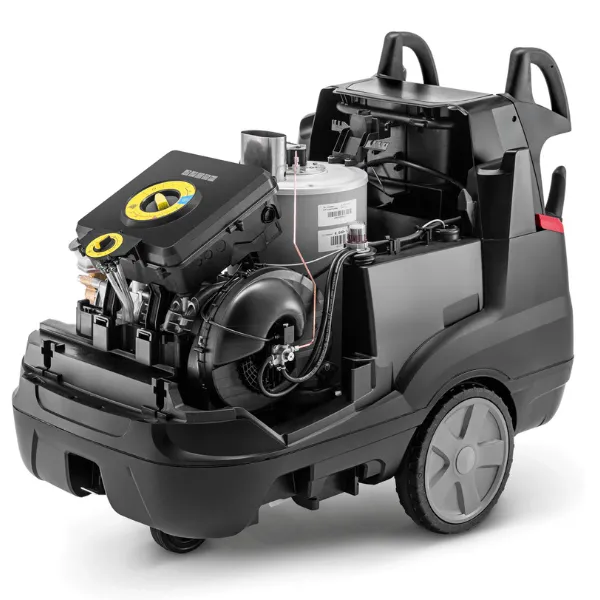

| Maximum efficiency | - Highly efficient, tried-and-tested "Made in Germany" burner technology.
- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high performance and long service life.
|
| Operational safety | - Easy-to-access water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the availability of the machine.
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
|
| Multiple storage spaces for accessories integrated into the machine | - On-board storage for full range of accessories. Includes 2 hooks for suction hose and power cord.
- Spacious storage compartment, e.g. for detergents, gloves or tools.
|
| Detergent dosing | - Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.
- Precise dosing valve ensures low consumption.
|

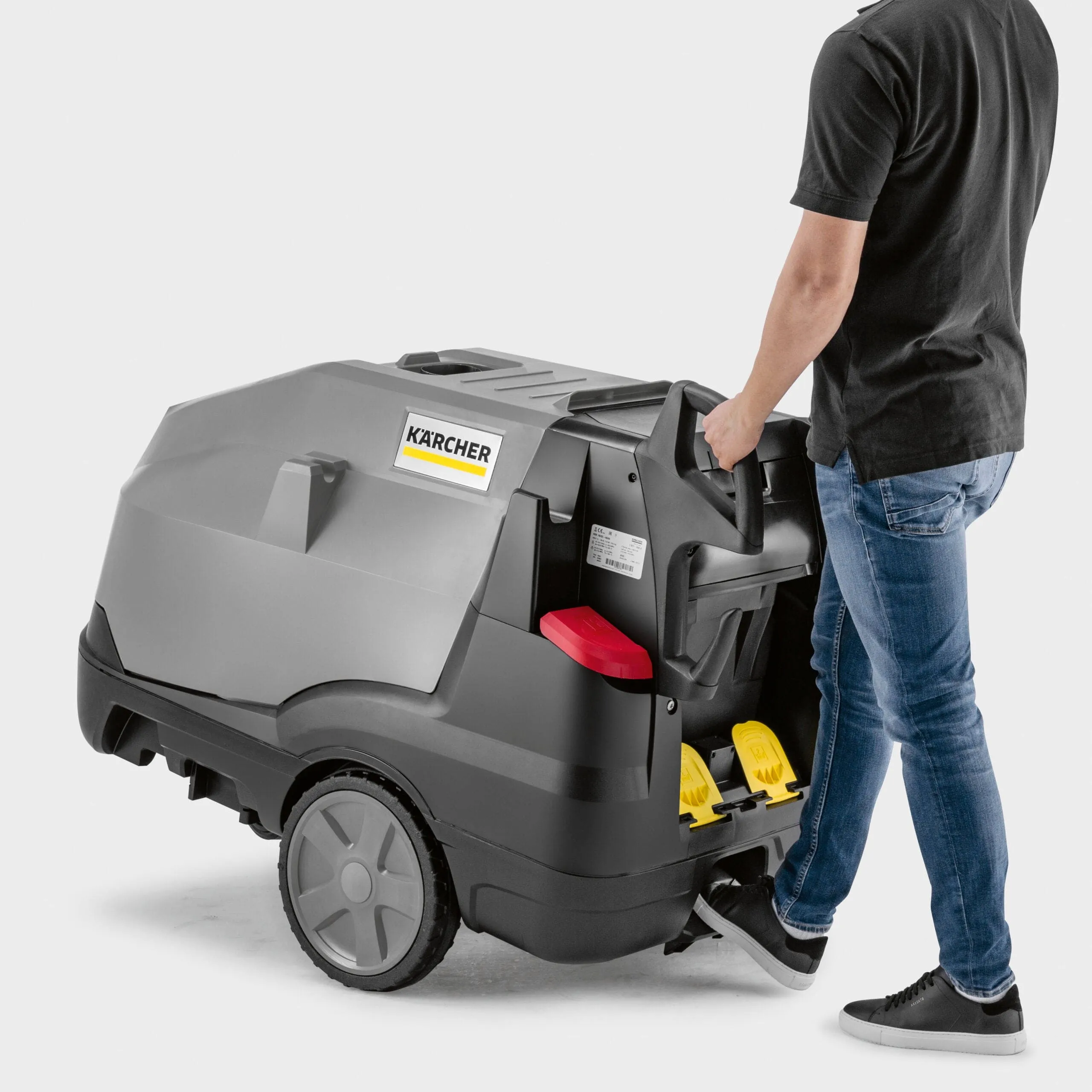

| Mobility concept | - "Jogger" design with large rubber wheels and steering roller.
- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.
|
| Easy to use controls | - One switch for all unit functions.
|
